current TV project:

reconstruction of the
R&S NM 510 A2

10 kW TV Transmitter BD III

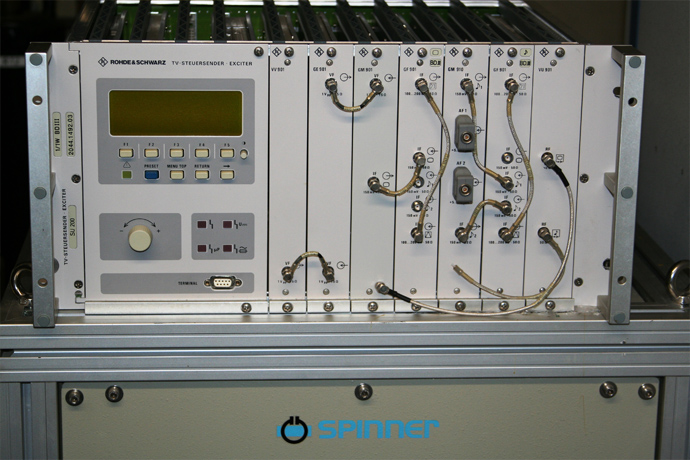

with exciter SU 200,
the last 100% analogue one
by R&S

formerly ARD/SWR
100 kW ERP (Donnersberg)
channel 10 (212,5 MHz)

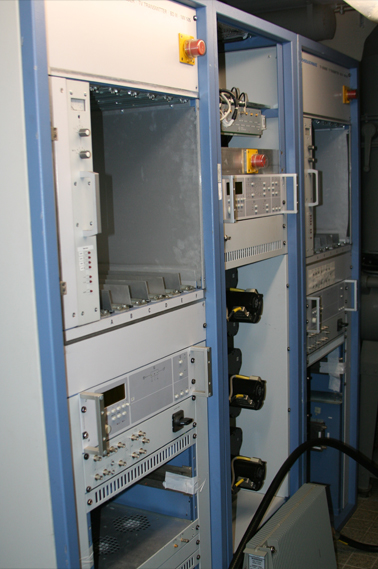

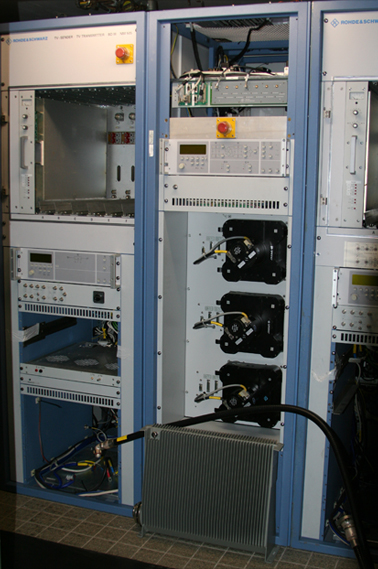

3x 19" racks
each 2.1 x 1.2 x 0.6m,

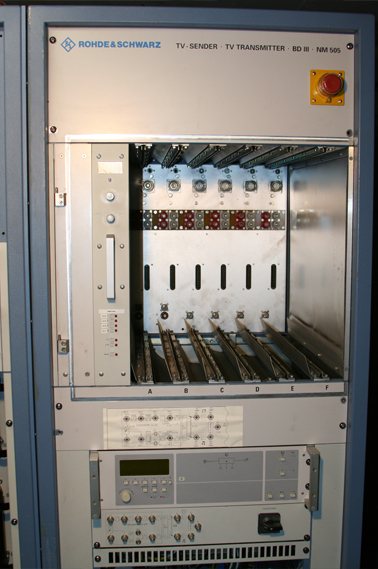

2x 5 kW NM 505

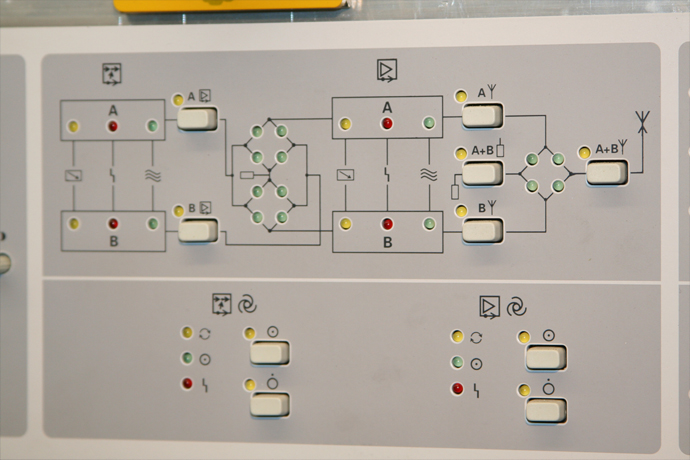

1x rack for control,
combining, switching &
dummy load

Spinner HF switcher

Spinner 10 kW dummy load,

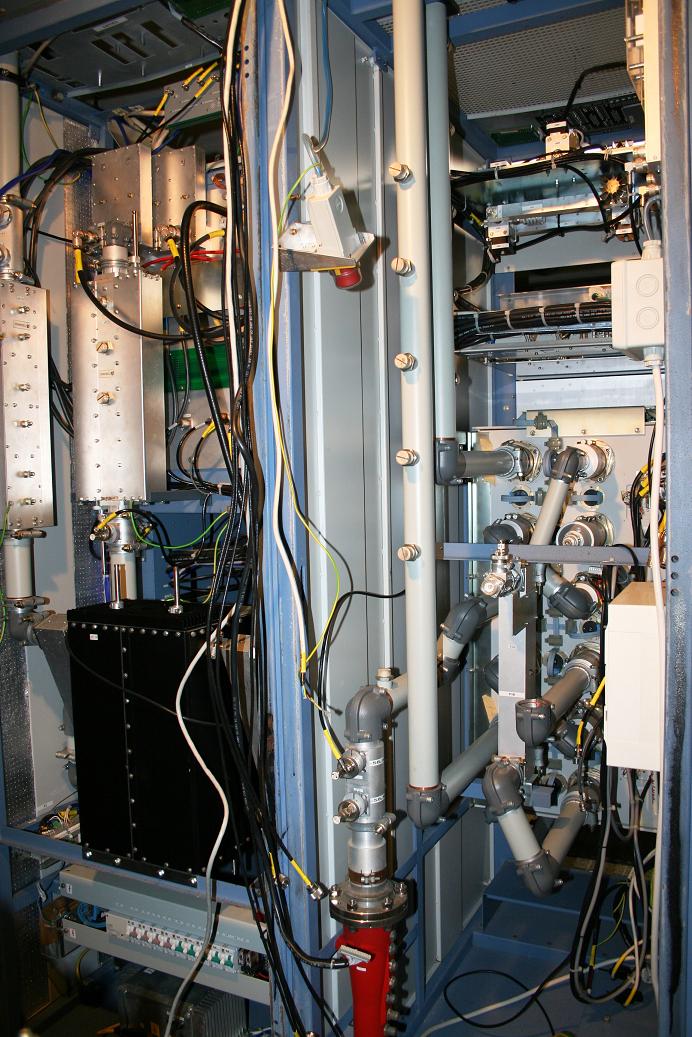

watercooled

amplifier slots per NM 505:
4x vision 1.5 kW
1x preamp vision 1.0 kW
1x sound 0.6 kW

see further details:
NM 510 A2 or NM 500
